Compressed Air Purification System - Refrigerated Air Dryer
Model: TRX Series
Patented dual-layer heat exchanger design
High efficiency performance
Low pressure drop
Overview

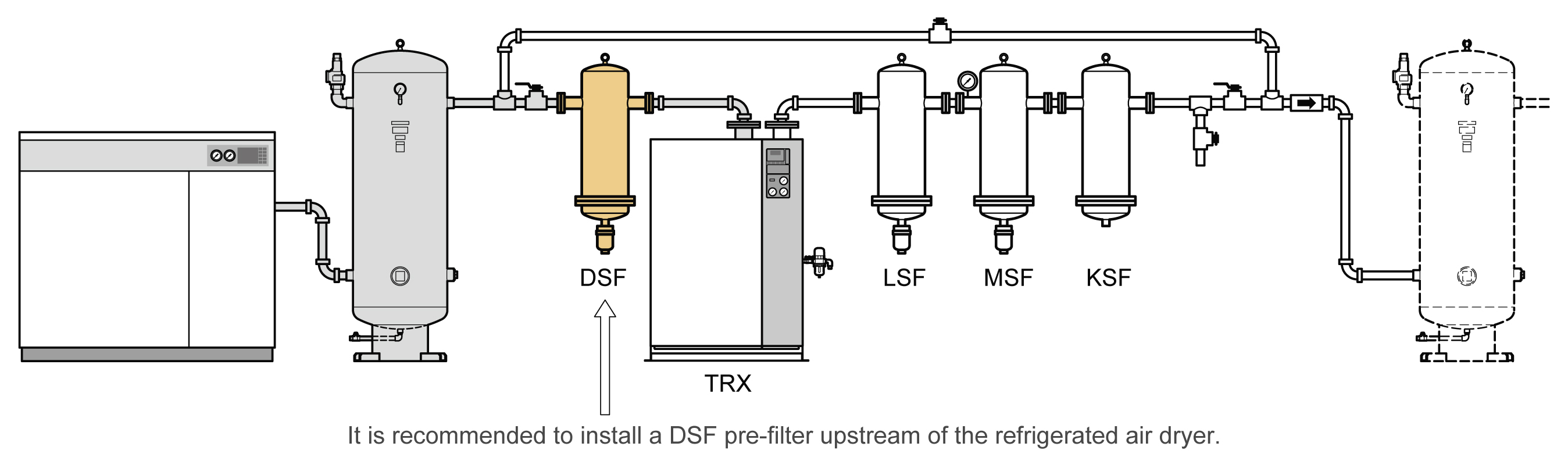

・Example of a standard stainless steel piping system configuration
Features
Stainless Steel Housing
．Prevents internal corrosion of the heat exchanger.
．Prevents clogging of automatic drain valves caused by rust.
．Prevents filter blockage due to corrosion.

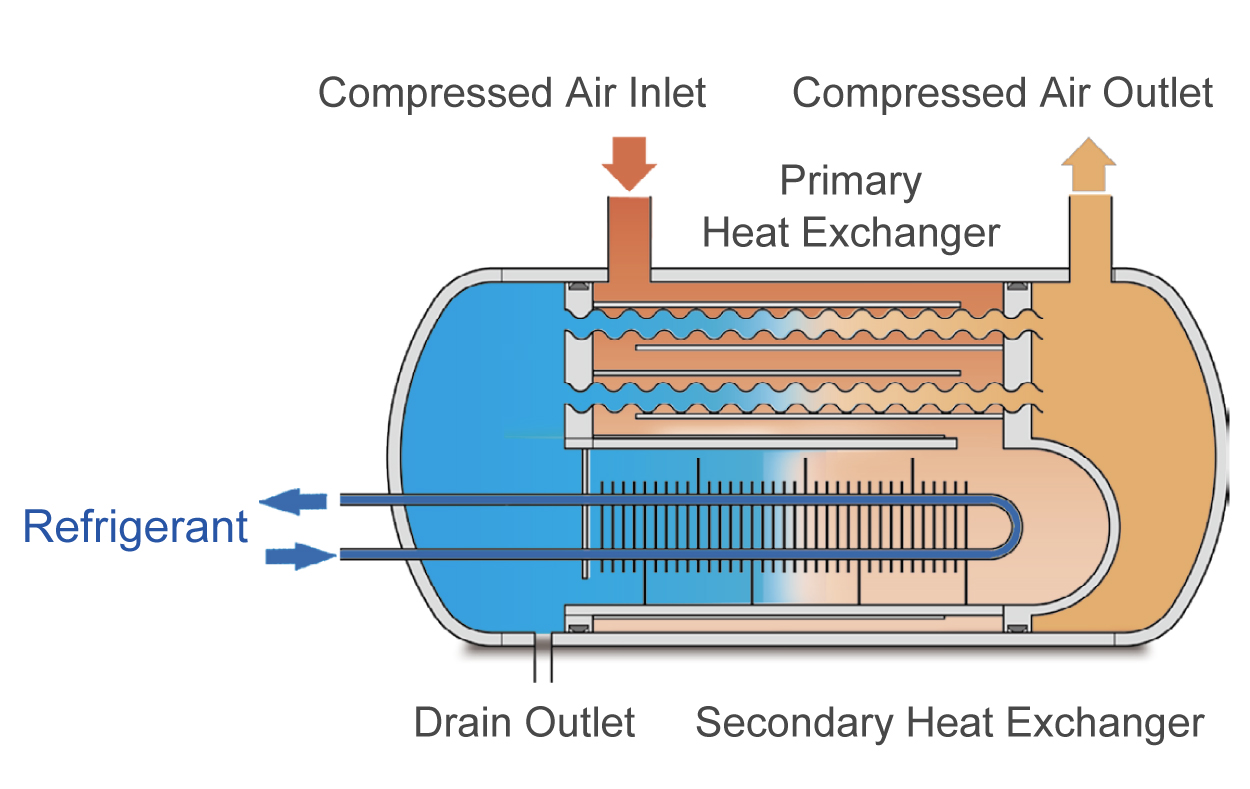

．Integrates primary and secondary heat exchangers into a single unit, reducing the installation footprint of the air dryer.

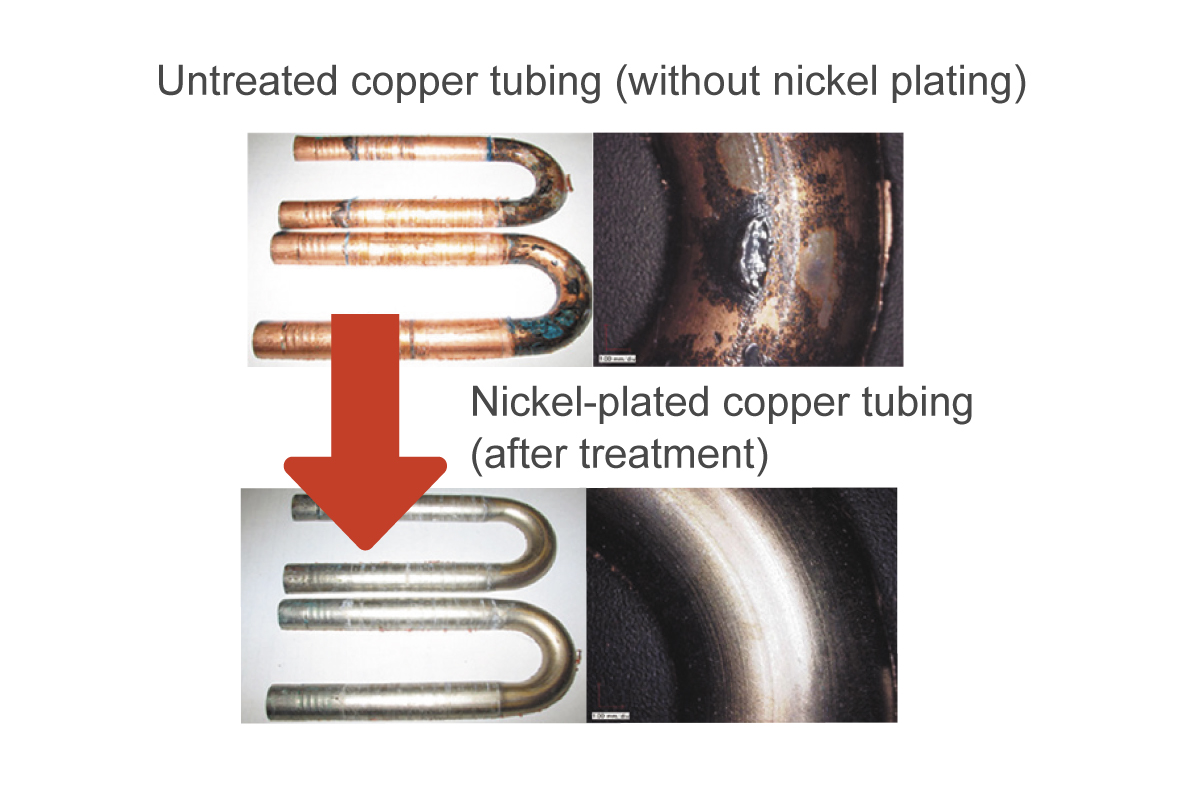

．Internal copper tubes of the heat exchanger are nickel-plated.
Ultra-High Efficiency

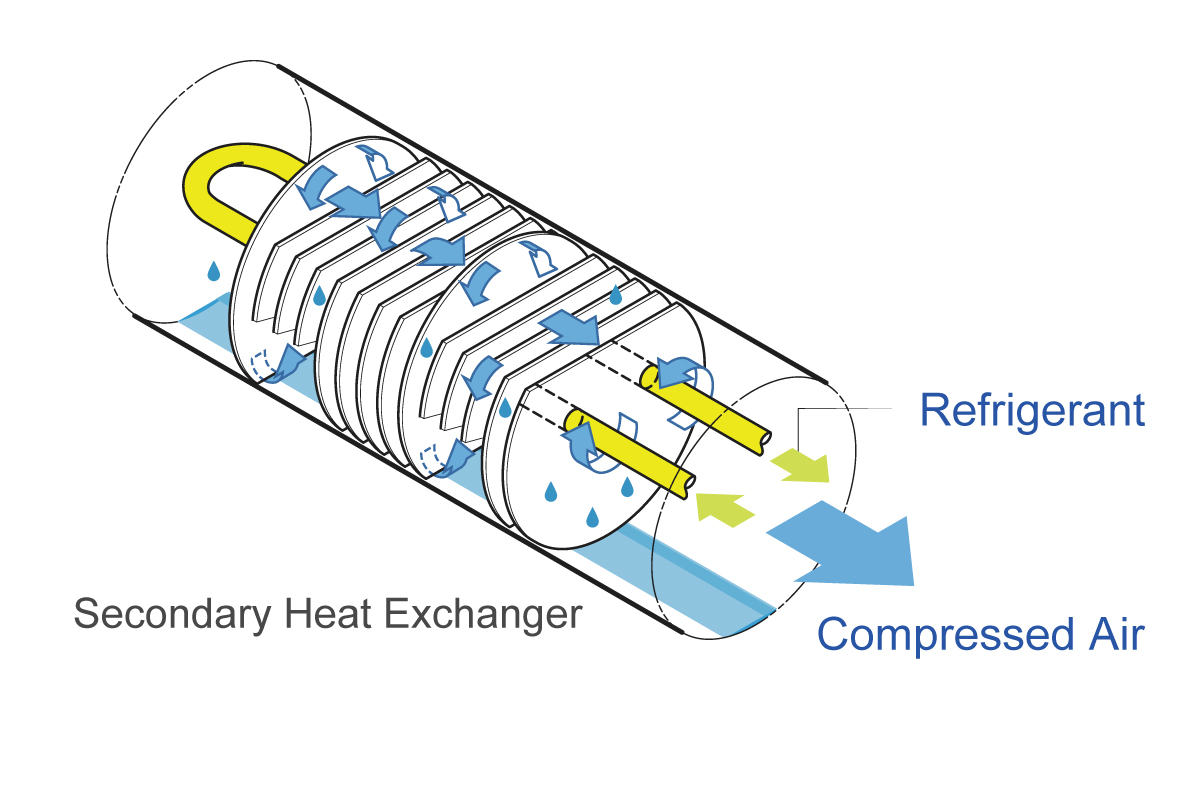

．Counter-flow turbulence design: Utilizing a specially engineered turbulence tube structure to enhance turbulence efficiency, achieving extremely high heat exchange performance. This improves reheating efficiency and delivers low dew point dry air.
．Cross-flow air design: Enhances pre-cooling and reheating capability, resulting in superior dehumidification performance.
Low Pressure Drop
．Reduces airflow blockage and pressure loss (≤ 0.2 kgf/cm²), improving energy efficiency.
Dimensions / Specifications
・Standard Air Inlet Models
※ Air flow capacity is based on the following conditions: Inlet pressure 0.69 MPa, ambient temperature 32°C, pressure dew point 10°C, inlet temperature 35°C.
※ We can meet various customer requirements. Custom power specifications are available, including single-phase and three-phase options with different voltages and 50Hz frequency. Please contact us for details.
・High Inlet Temperature Models
※ Air flow capacity is based on the following conditions: Inlet air pressure 0.69 MPa, ambient temperature 32°C, pressure dew point 10°C.
※ The inlet air temperature is: 55°C for models TRX5HD, TRX10HD, TRX100HD2, TRX100HD2-W; 50°C for models TRX20HJ to TRX75HJ.
